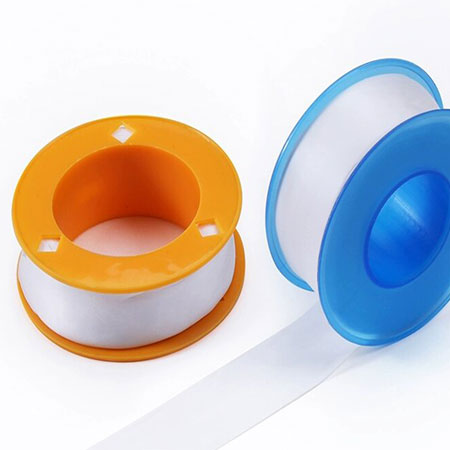

PTFE film tape (Teflon tape)
PTFE film tape made by Polytetrafluorethylene widely applied in wrapping -insulated-shield material for Aerospace cable.
PTFE film tape has emerged as a premier choice for aerospace cable wrapping insulation tape materials, attributed to its exceptional characteristics: With a wide range from -55℃ to 260℃, PTFE tape can withstand extreme environmental conditions.Superior fire resistance and insulation significantly enhance the safety performance of cables.The wrapping process, as opposed to traditional extrusion methods, yields thinner and lighter cables. Customized colors are suitable for multi-core cables, with laser marking capabilities.
Hs code: 392099
Color :Nature, white ,red ,gray,or customized color
Advantage
- Low friction coefficient, high flexibility
- Low dielectric constant, low dielectric loss, and low signal attenuation
- Fire retardant critical oxygen index is more than 95%, almost in pure oxygen to burn
- Smooth surface, wear-resistant, bending resistance
- Excellent weather resistance
- PTFE film can be used outdoors for a long time, with mildew proof, moisture-proof and salt spray proof
- Chemical corrosion resistance: whether in a strong acid or a strong alkali, almost stable in all chemicals
High density unsintered PTFE Films Wrapping Tapes
| Specifications | |||||||
| Thickness | 0.05mm | 0.075mm | 0.1mm | 0.13mm | 0.15mm | 0.20mm | 0.25mm |
| Tolerance | ±0.005mm | ±0.005mm | ±0.005mm | ±0.005mm | ±0.007mm | ±0.010mm | ±0.015mm |
| Width | 4mm – 200mm (±0.2mm) | ||||||
| Density | 1.60g/cm3 (±0.05g/cm3) | ||||||
| Typical and Electrical Properties | |
| Tensile Strength（min) | 10 MPa （thickness ≤ 0.152mm） |
| 7 MPa (thickness ≤ 0.254mm） | |
| Elongation (min) | 50% |
| Operation Temperature | -55℃ to +260℃ |
| Dielectric Constant | 1.8 |
| Dissipation Factor | ≤ 0.0001 |
| Dielectric Strength | ≥ 27.6 kv/mm |
| Flammability Rate | VTM – 0 (UL 94) |
Low density unsintered PTFE Films Wrapping Tapes
| Specifications | |||||||
| Thickness | 0.05mm | 0.075mm | 0.1mm | 0.13mm | 0.15mm | 0.200mm | 0.25mm |
| Tolerance | ±0.005mm | ±0.005mm | ±0.005mm | ±0.005mm | ±0.0076mm | ±0.010mm | ±0.015mm |
| Width | 4mm – 200mm (±0.2mm) | ||||||
| Density | 0.70g/cm3 – 0.90g/cm3 (±0.05g/cm3) | ||||||
| Typical and Electrical Properties | |
| Tensile Strength（min） | 12 MPa |
| Elongation (min) | 50% |
| Operation Temperature | -55℃ to +260℃ |
| Dielectric Constant | 1.4 |
| Dissipation Factor | ≤ 0.0001 |
| Dielectric Strength | ≥ 27.6 kv/mm |
| Flammability Rate | VTM – 0 (UL 94) |
Skived Ptfe Film
| Specifications | |
| Thickness | 0.03 – 3mm (±0.005mm) |
| Width | 4mm – 120mm |
| Density | 2.15g/cm3 (±0.08g/cm3) |
| Typical Properties | |
| Tensile Strength（min） | 30 MPa |
| Elongation (min) | 60% |
| Operation Temperature | -55℃ to +260℃ |
| Dielectric Constant | 2.3 |
| Dielectric Strength | ≥ 60 kv/mm |
| Flammability Rate | VTM – 0 (UL 94) |
Application
- Microwave coaxial cable
- High-speed data cable
- Double twisted wire cable
- Cockpit and cabin power supply system
- Power cables and hook-up lines
- Around the engine Special cable
- Microwave coaxial cable
PTFE (teflon tape）cable winding film tape has excellent electrical performance, fire prevention and flame retardant, low friction coefficient and excellent weather resistance, stable chemical performance, PTFE Films is Excellent dimensional stability and consistency can reduce signal attenuation, ensuring stable and speedy transmission of high-frequency signals cables. High flexibility and high resilience can improve the bending performance of cables and extend their service life.It is a commonly used insulated shielding material in the cable used for aviation field .
