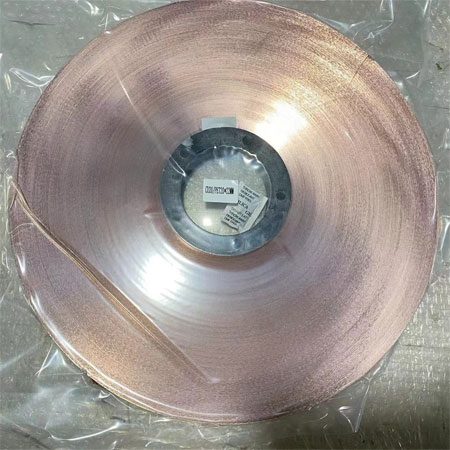

Copper pet mylar polyster tape
- Quality control :under ISO standards and RoHS compliant.
- HS code：7410219
- Structure:CU+PET;CU+PET+CU
- Types of copper alloys:rolled copper foil
- Copper purity: more 99.95%
- Width: min 7mm ;max width 370mm
- Color: Natural, blue
- Tensile strength min 95MPA, Elongation more 10%
- Inner core size (ID):2"(52mm)；3"(76mm)
- Outer diameter: 300-500mm depend on the cu pet of thickness and width
- Application: Copper pet foil have good effect in wire and cable signal shielding insulation material
Technical parameters
| Structure | Thickness(μm） | Weight(g/m2) | Yield(m2/kg) |
| CU15+PET12 | 29~31 | 153.24 | 6.52 |
| CU15+PET23 | 40~42 | 168.6 | 5.92 |
| CU18+PET23 | 43~45 | 195.34 | 5.11 |
| CU20+PET20 | 42~44 | 208.9 | 4.78 |
| CU15+PET23+CU15 | 57~59 | 304.1 | 3.28 |
| CU18+PET23+CU18 | 66~68 | 357.5 | 2.79 |
Application :Copper -polyester/ (CU-PET) composite tape is a tape material made of copper and PET mylar. It has good mechanical properties, electrical properties and corrosion resistance, so it is widely used in electronics, electric power, automobile, aviation and other fields. The manufacturing process of copper polyester/ (CU-PET) composite tape includes the composite, forming and cutting of copper foil polyester/ (CU-PET)film. We can provide different thicknesses, widths and shapes of copper-PET mylar composite tape
